Device-To-Device (D2D) Communication Testbed

Reliable and Secure Connectivity — No Towers Required

Welcome to Mantiswaves’ Device-to-Device (D2D) Communication Testbed, a cutting-edge experimental platform designed to explore, evaluate, and advance next-generation wireless communication technologies. This testbed provides researchers, developers, and innovators with a flexible environment to prototype and validate D2D scenarios such as direct data exchange, cooperative networking, edge-assisted services, and 5G/6G use cases.

By enabling devices to communicate directly without relying solely on traditional network infrastructure, our testbed supports studies in- Low-latency communication for mission-critical applications, Energy-efficient data sharing between mobile and IoT devices, Spectrum utilization and interference management, Security and privacy in peer-to-peer connectivity

 With real-world hardware integration, customizable software frameworks, and monitoring tools, this testbed bridges the gap between theoretical research and practical deployment. Whether for academia, industry, or open innovation, our D2D Communication Testbed empowers you to test ideas, validate protocols, and accelerate breakthroughs in future wireless ecosystems. Mantiswave’s D2D Communication Stack empowers devices to communicate directly—without relying on cellular towers or internet access. Built for mission-critical environments, our technology is engineered for defence agencies and research institutions exploring the future of decentralized networks.

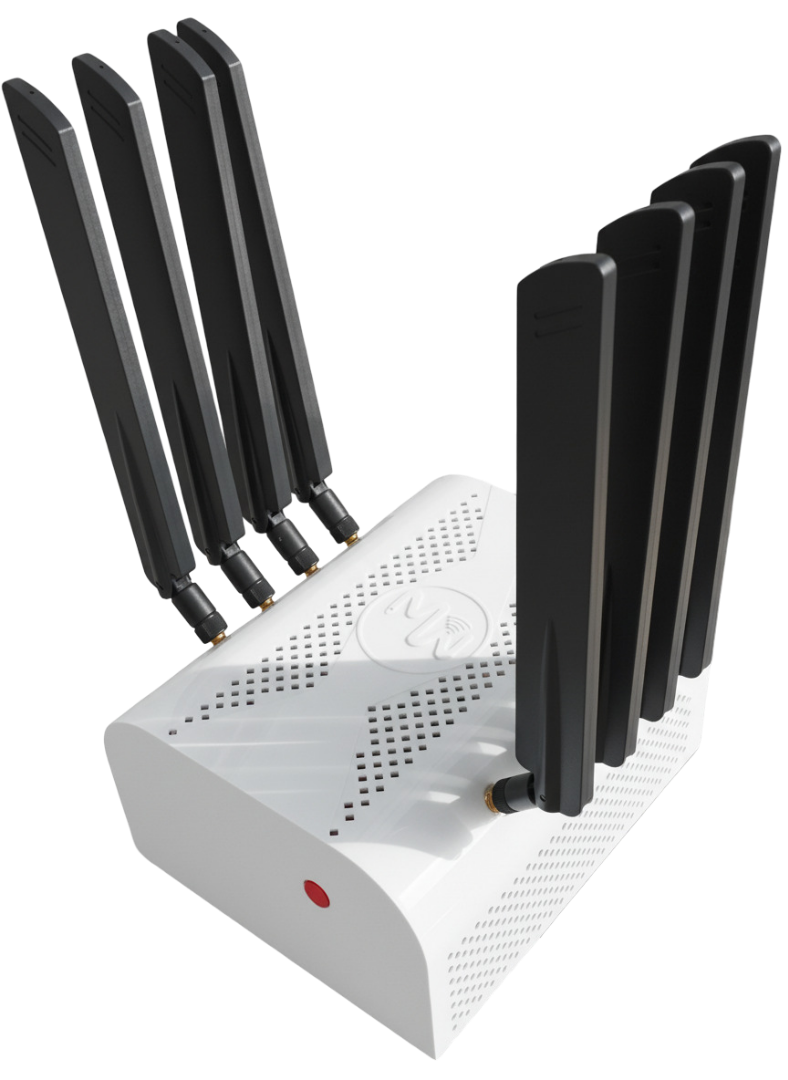

Device-To-Device Communication Testbed

  • Works out of the box
  • Customizable
  • Open Source Stack
  • 3GPP Compliant
  • Hybrid Architecture
  • Portable
  • Cost Effective
  • Comprehensive Dashboard

Dashboard Features

  • Configure: Transmission Parameters
  • Deploy: Start/Stop Tx and Rx Nodes
  • Monitor: Spectrum, Constellation, Message, KPIs
  • Manage: Resource and Modulation Configuration
  • Integrate: 3rd Party Apps

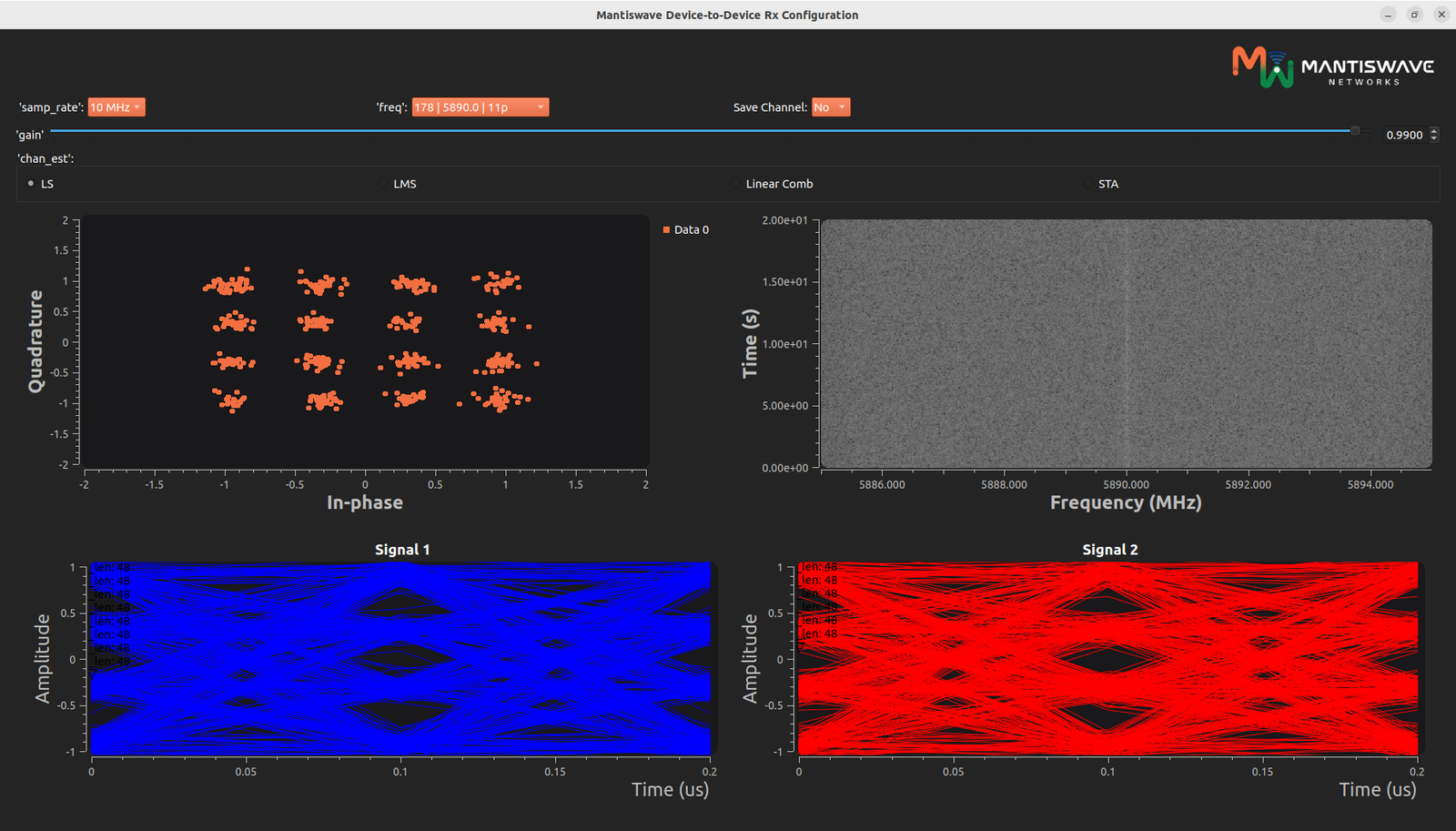

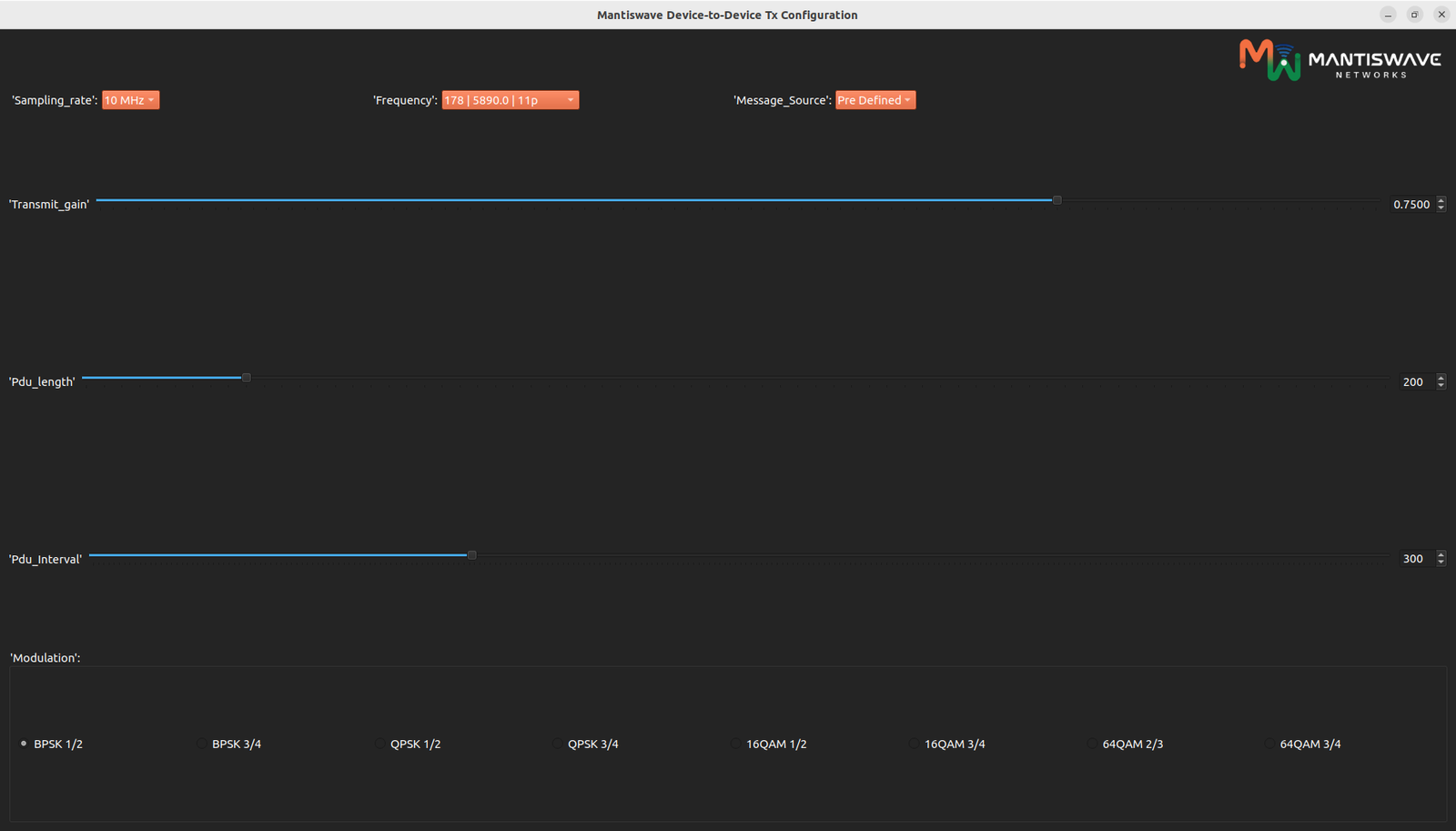

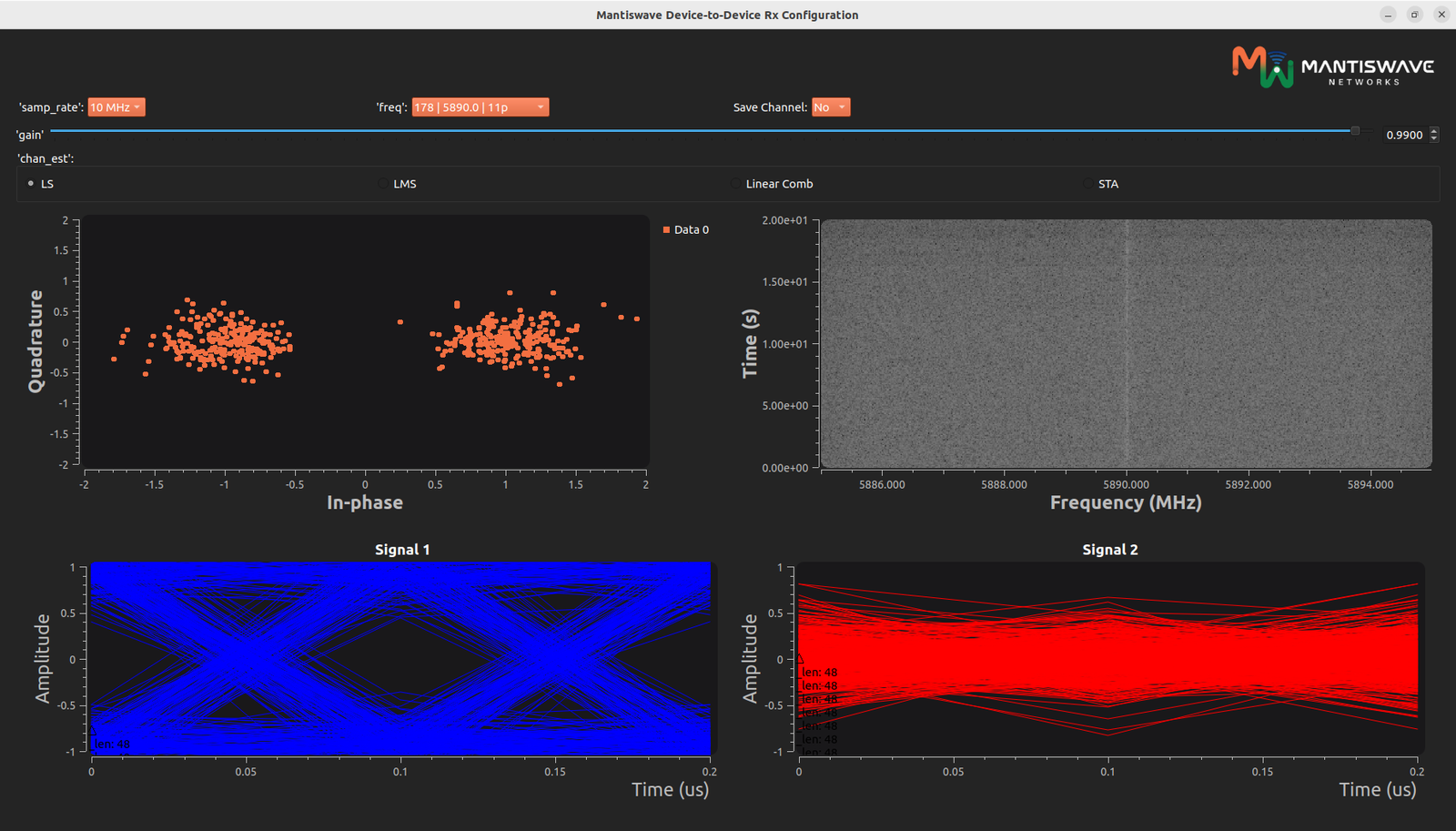

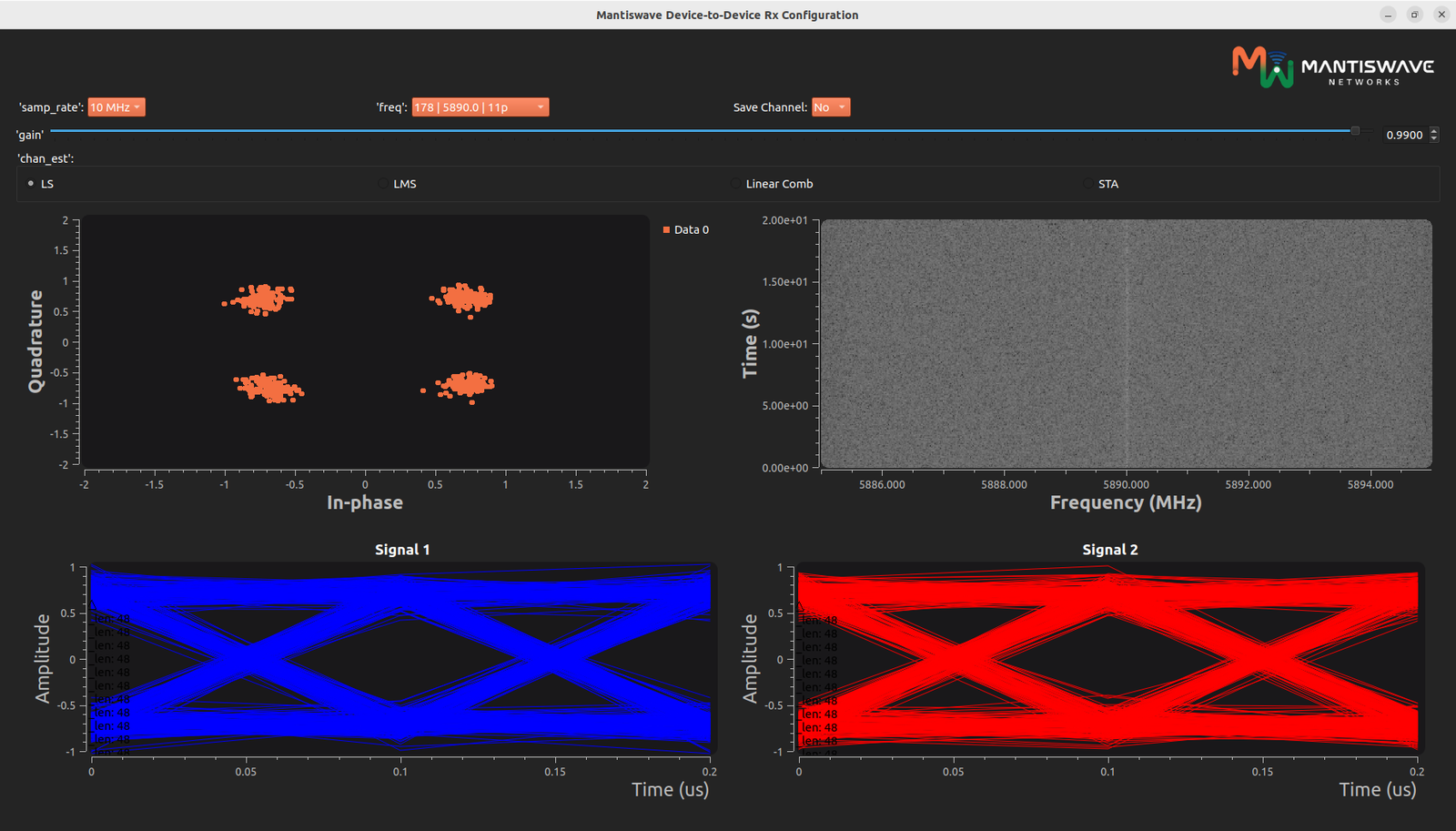

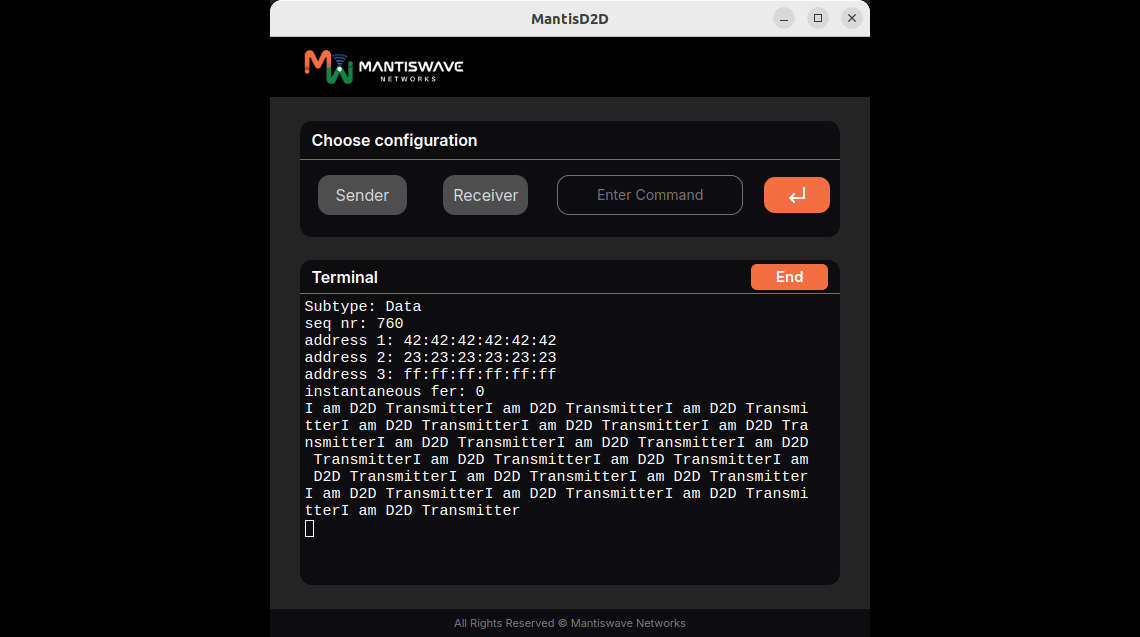

Dashboard Screenshots

Key Features

5G/LTE-Compliant D2D Communication

Our system is fully compliant with LTE standards, facilitating interoperability, resource allocation, and standard-driven performance validation. Direct D2D communication allows for faster data transfer and lower latency, bypassing traditional network .

Software-Defined Radio (SDR) Implementation

Built on a flexible SDR platform, enables flexible and reconfigurable prototyping of D2D communication protocols, allowing rapid experimentation with modulation schemes, frequency bands, and signaling techniques.

Real-Time Performance Evaluation

Provides live monitoring and analysis of critical metrics such as latency, throughput, message, spectrum, and reliability, ensuring accurate benchmarking of protocols and architectures.

Suitable for R&D in B5G

Offers a scalable and customizable platform to explore Beyond 5G (B5G) use cases including ultra-reliable low-latency communication (URLLC), massive IoT, and AI-driven network optimization

Device-To-Device Communication Testbed Technical Specification

Technology5G WiFi / LTE Sidelink for D2D Link
Frequency bandsAny supported band up to 6 GHz
Channel bandwidthup to 20 MHz for D2D
Max. throughput10 Mbps D2D link
Standards3GPP Rel. 15
Antenna ConfigurationSISO / 2×2 MIMO
Modulation OrderBPSK, QPSK, 16QAM and 64 QAM
D2D StackOpen Source Stack
Max. Transmit Power10 dBm (10 mW)
RangeUp to 20 m radial coverage (~1200 m2)
Power supply220 V AC
Operating temp-10º C to 55ºC
Number of Device Nodes2
Sampling RateUp to 61.44 Msps
Dashboard
Configure, manage and visualize KPIs of D2D links.
LAB Manual:Lab manual to conduct LAB experiments for D2D link
Power Consumption:50 Watt /node
Weight2.5 Kg (for single node)
