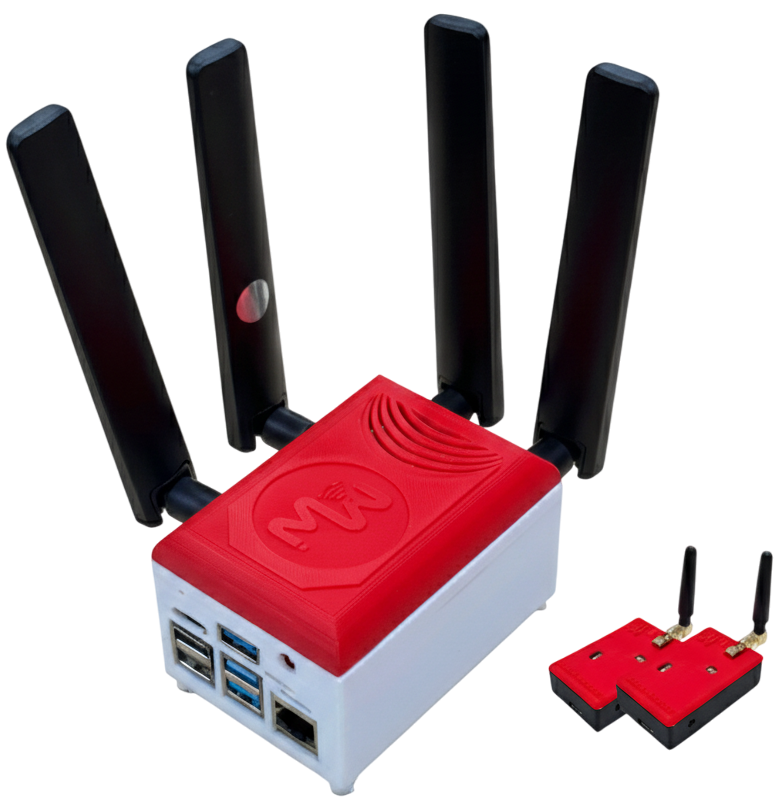

Mantis 5G Industrial IoT (IIoT) Gateway

The Mantiswave IIoT Gateway is a next-generation platform designed to unify connectivity, intelligence, and management across industrial and research environments. Tailored for Industry 4.0, academia, and R&D applications, it provides a powerful bridge between diverse IoT devices and networks, enabling seamless data acquisition, processing, and analysis. With its customizable dashboard, users can easily register and deregister sensors, manage connected devices, and visualize real-time data streams through intuitive interfaces. The gateway empowers organizations to perform advanced analytics, detect patterns, and generate automated alerts for faster decision-making and improved operational reliability.

Beyond local intelligence, the Mantiswave IIoT Gateway is engineered for cloud integration, ensuring scalability and secure access to sensor data from anywhere. Its flexible architecture supports both experimental and production-grade deployments, making it an invaluable tool for smart manufacturing, logistics, industrial automation, and research-driven innovation. By combining sensor management, visualization, analytics, and cloud connectivity, the Mantiswave IIoT Gateway delivers a comprehensive solution for enterprises and researchers striving to accelerate digital transformation and unlock new insights from their IoT ecosystems.

5G Industrial IoT Gateway that fits all your needs

  • Works out of the box
  • Customizable
  • Supports wired and WiFi Cameras
  • WiFi and LoRA Compatible
  • Easy Integration
  • Portable
  • Cost Effective
  • Comprehensive Dashboard

Dashboard Features

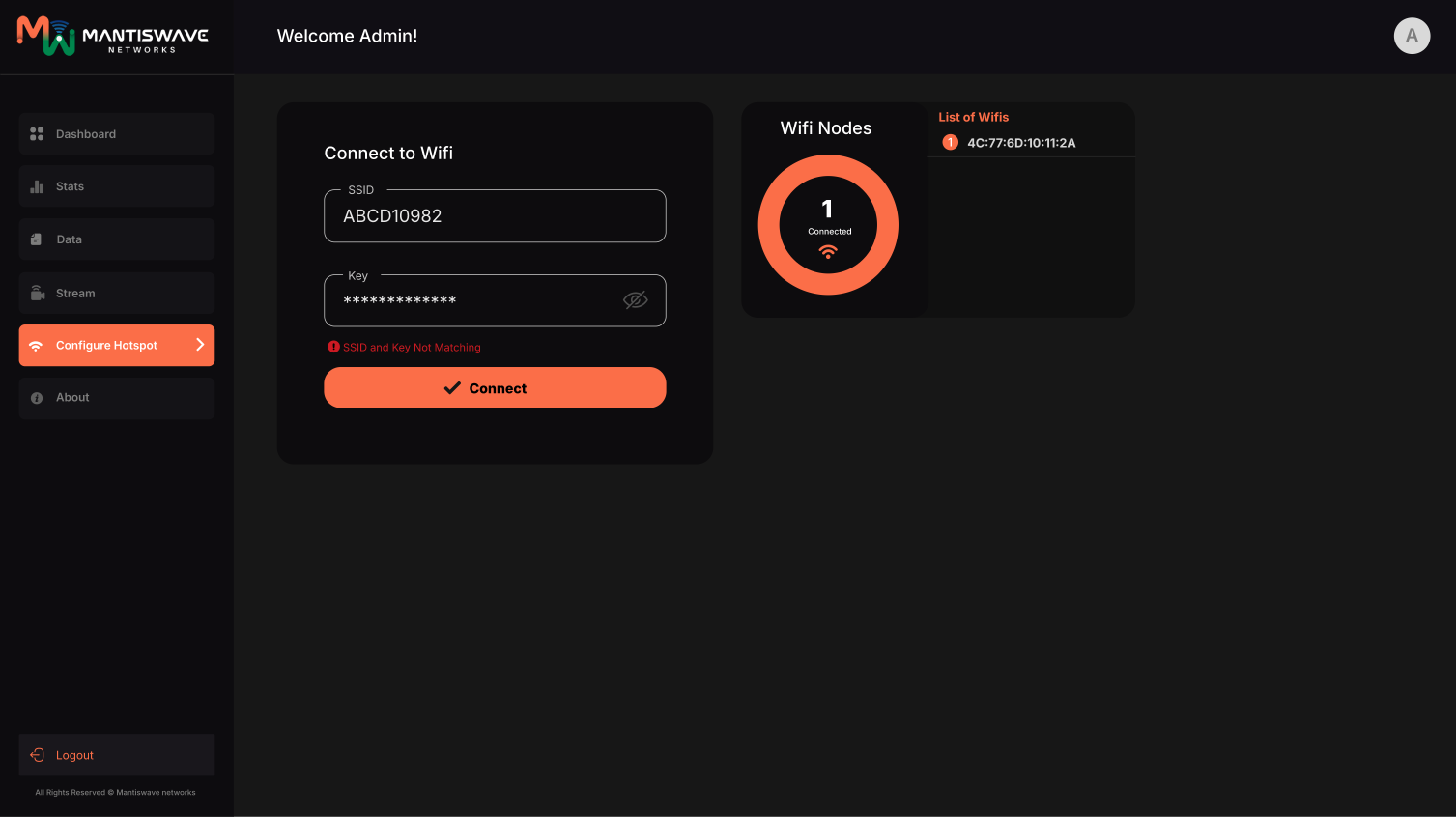

  • Configure: WiFi AP
  • Deploy: Start/Stop WiFi AP and LoRA Gateway

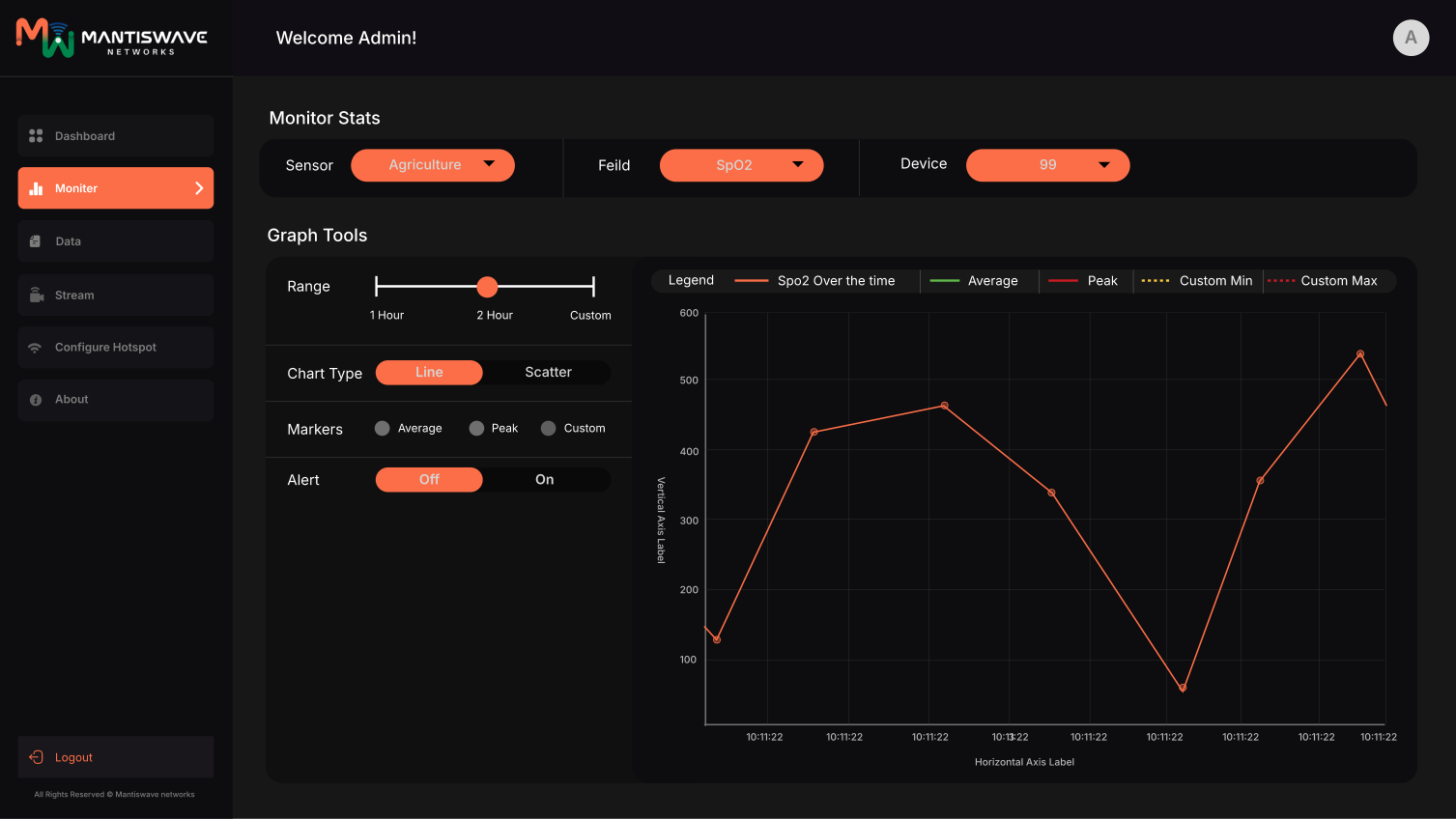

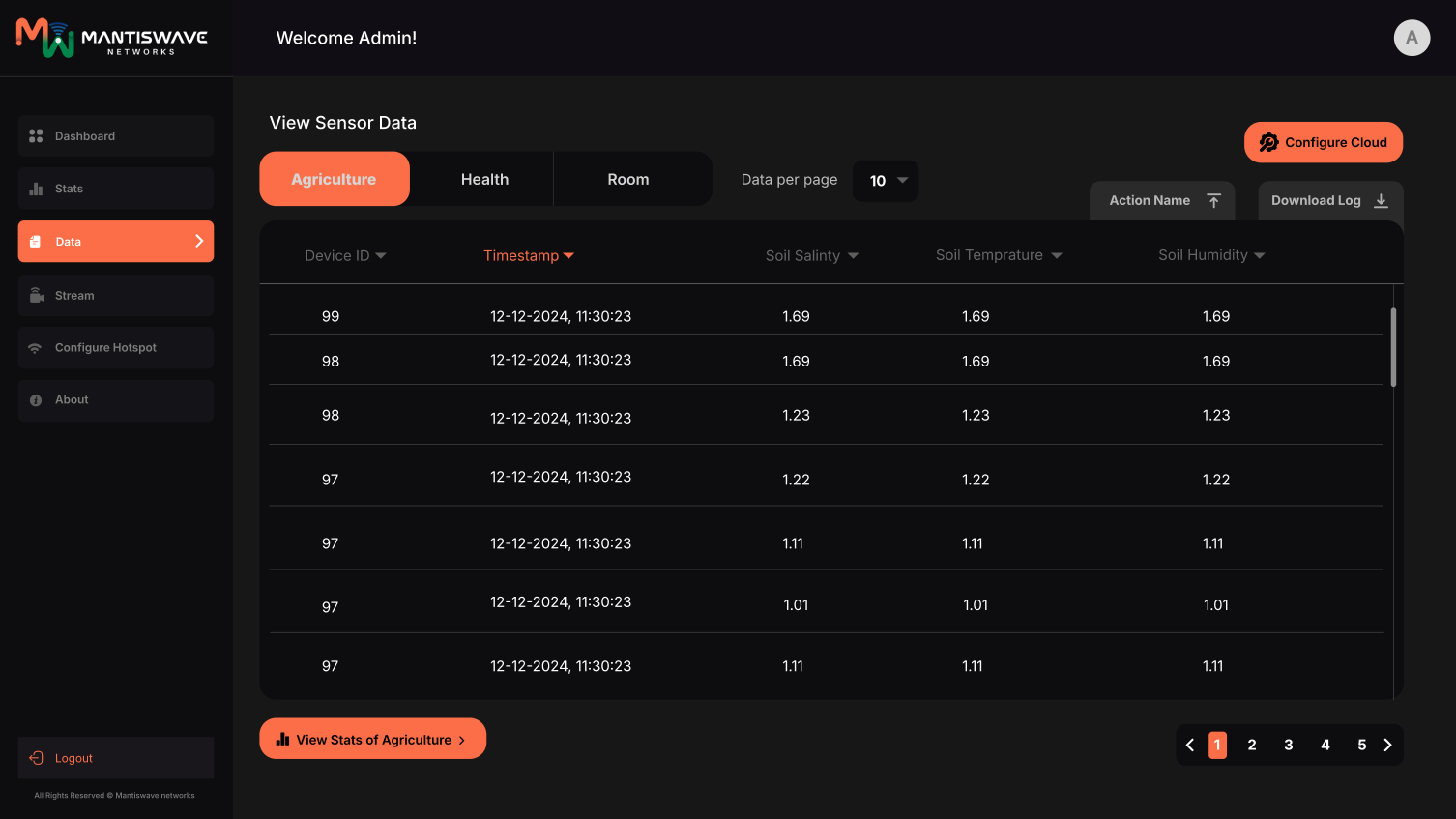

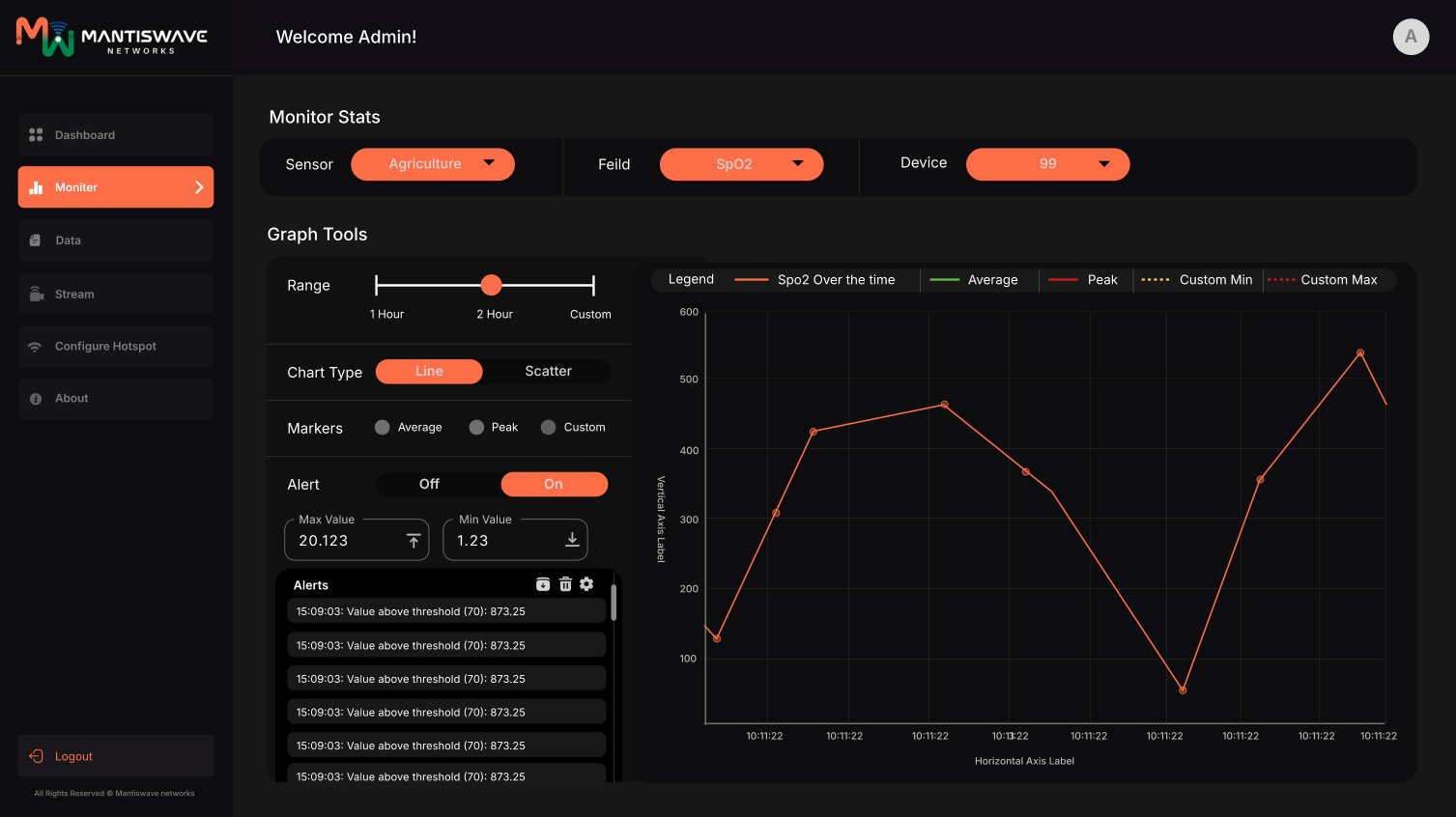

  • Monitor: Sensor Data, Logs and KPIs
  • Manage: Resource Configuration and Subscribers

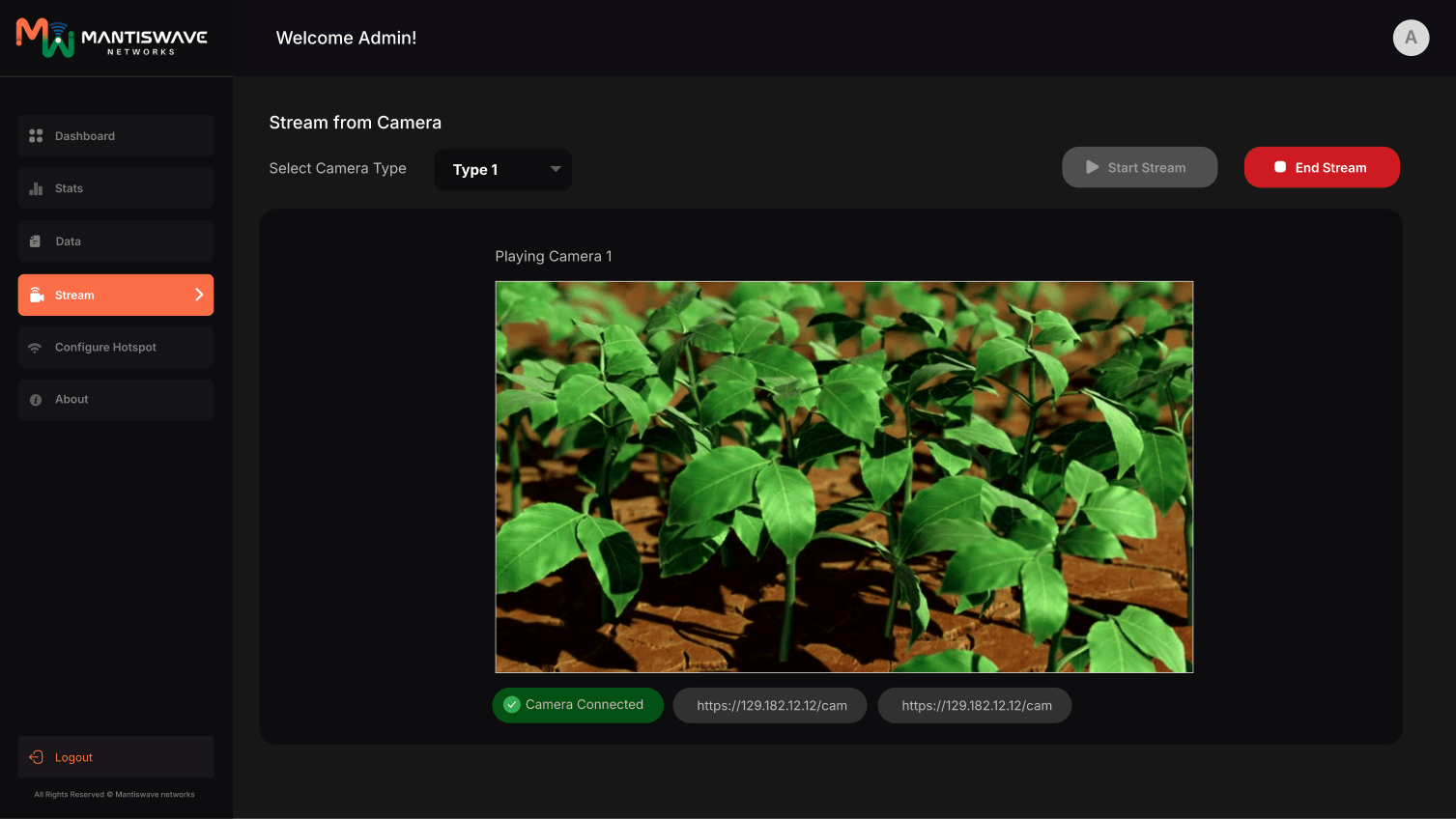

  • Integrate: Wired/WiFi cameras

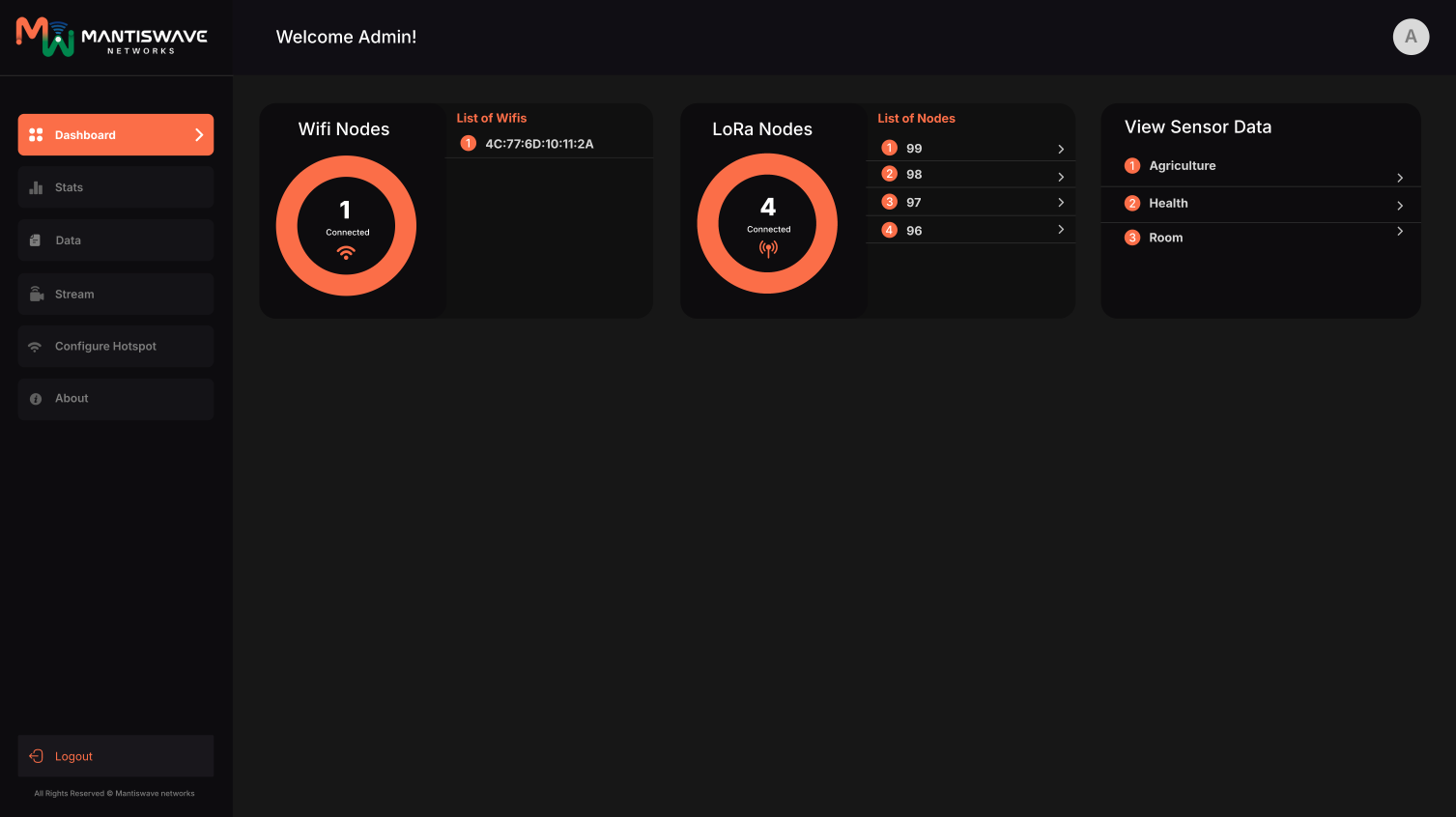

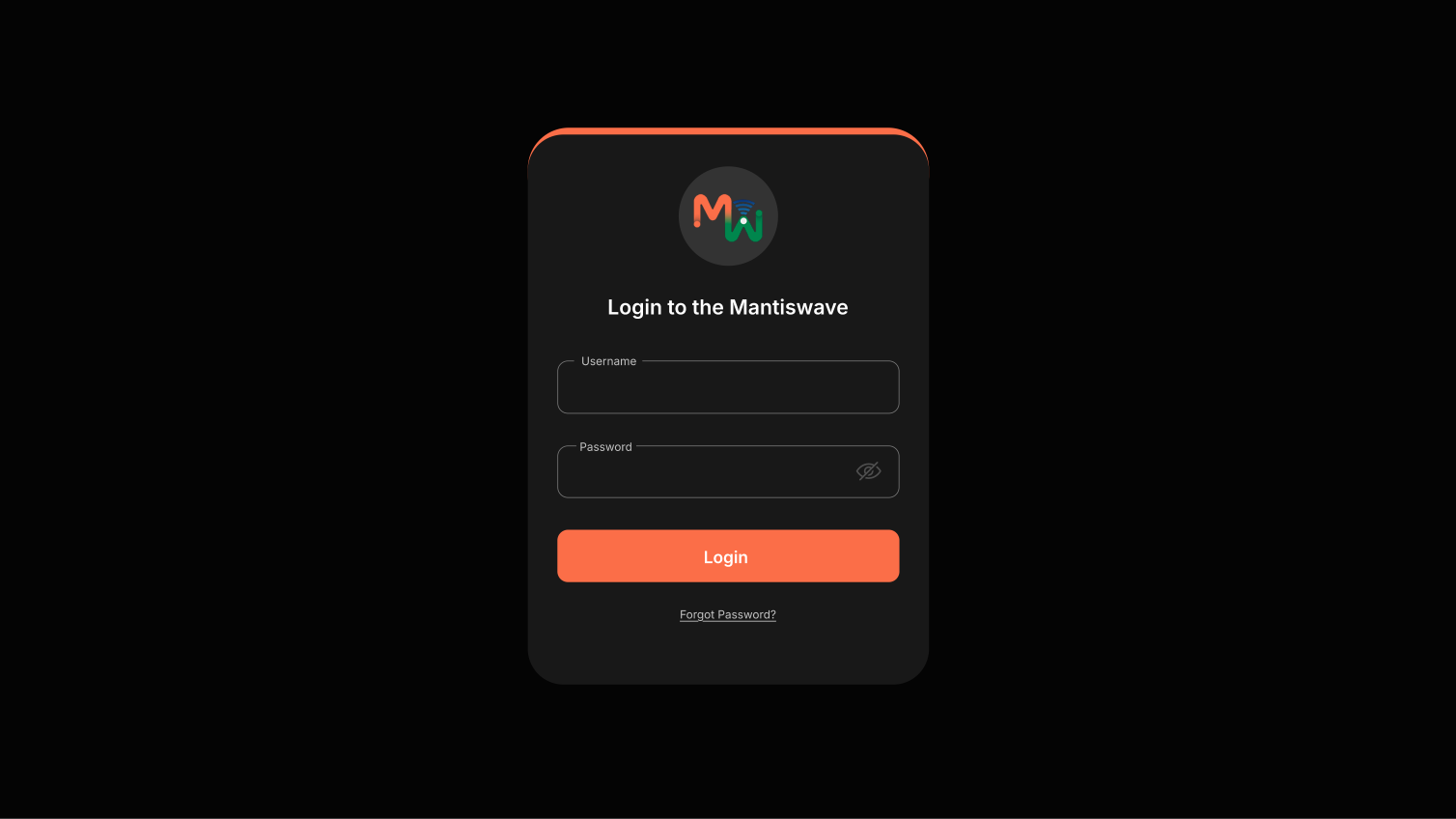

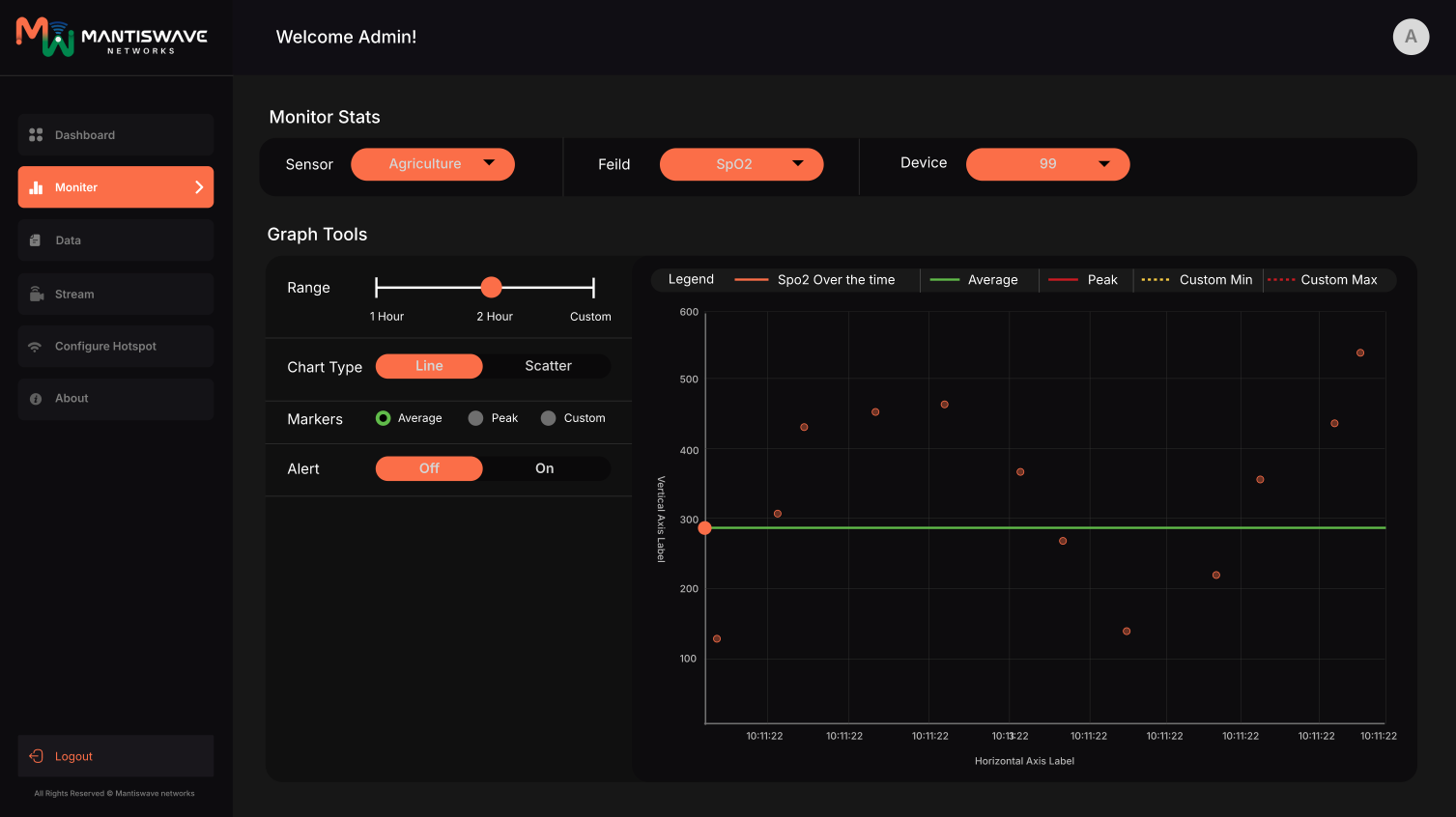

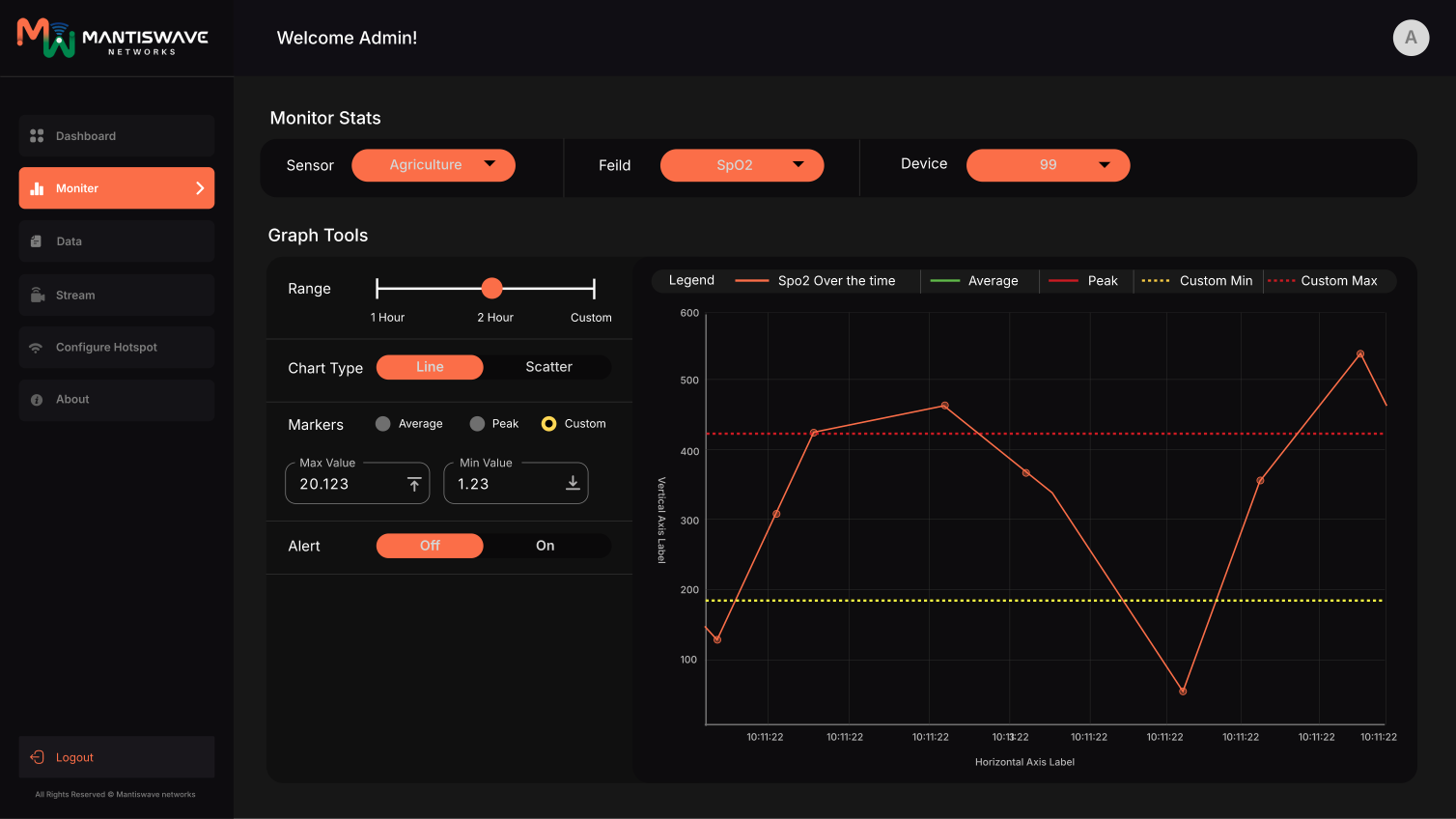

Dashboard Screenshots

Benefits

Reliability and Performance

Designed for industrial-grade reliability, the Mantis 5G-NR WiFi and LoRa Gateway ensures consistent connectivity and efficient data handling, even in the most challenging environments.

Versatility and Scalability

The gateway’s versatile design supports a wide range of applications and can easily scale to meet growing network demands, making it a future-proof solution for evolving industrial needs.

Ease of Management

The Mantis Dashboard provides a user-friendly interface for managing the gateway, sensor nodes, and surveillance systems. Its intuitive design simplifies the complexities of industrial IoT and surveillance management.

Innovation and Expertise

Backed by Mantiswave Networks’ extensive expertise in 5G and wireless technologies, the gateway represents the forefront of innovation in industrial IoT and surveillance solutions.

5G Industrial IoT Gateway Specifications

Maximum Coverage

500 meters for LoRA, 10-20 meters for WiFi sensors

Supported Sensor Protocol

SPI, I2C, UART, Analog, and Digital

Number of LoRA Sensors

up to 32

Number of WiFi Sensors

up to 5

Camera Resolution

up to FHD

Antenna Configuration

SISO and 2×2 MIMO

5G-NR Data-rate

DL 2.1 Gbps, UL 900 Mbps

Power supply

25 Watt, 5 V DC

Operating temp

-10º C to 55ºC

Dashboard

Access to all features of the Mantiswave Dashboard.

Connection

WiFi 2.4/5 GHz, LoRA 868 MHz, Gigabit Ethernet, 5G, 4G-LTE

Supported 5G-NR SA Bands

n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79

LAB Manual:

Lab manual to conduct LAB experiments

Weight

500 grams

Dimension

150 x 120 x 80 mm
